260PCS Heat Shrink Ring Crimp Terminal Tinned Copper 22-10 Gauge Wire Connectors

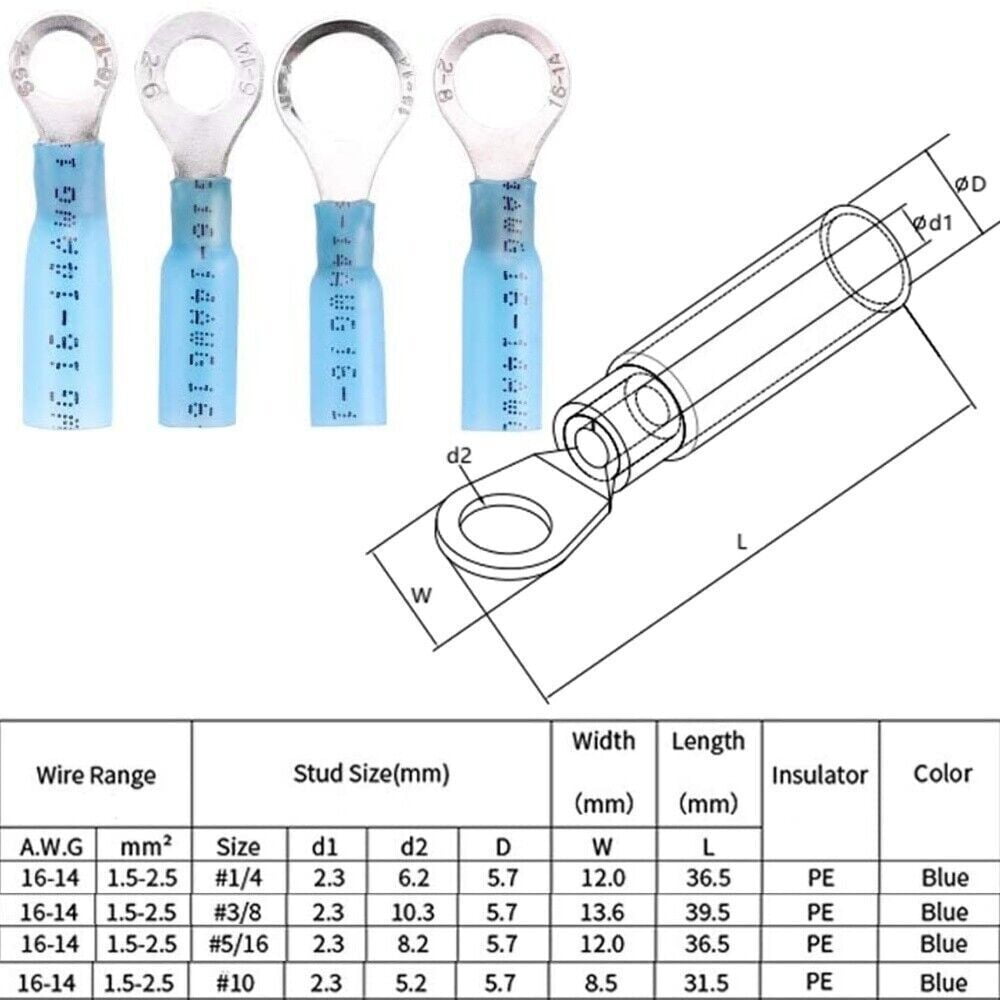

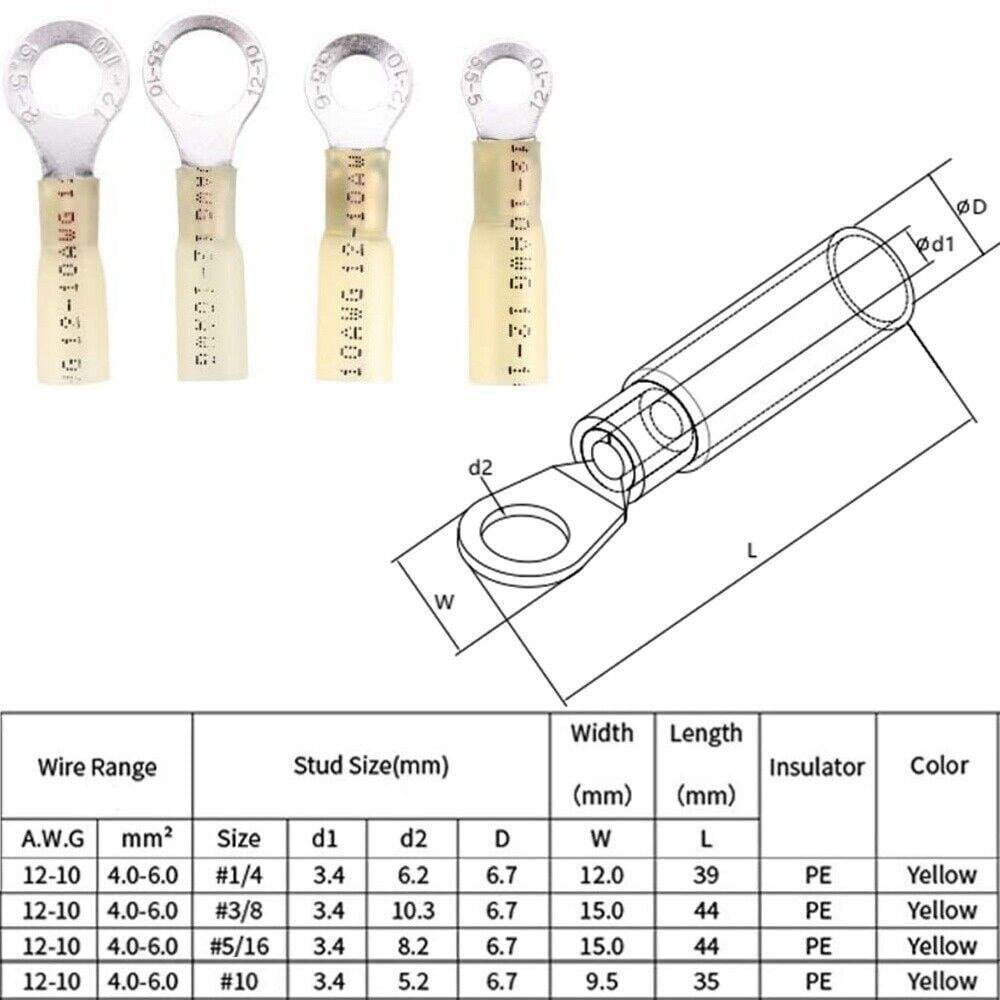

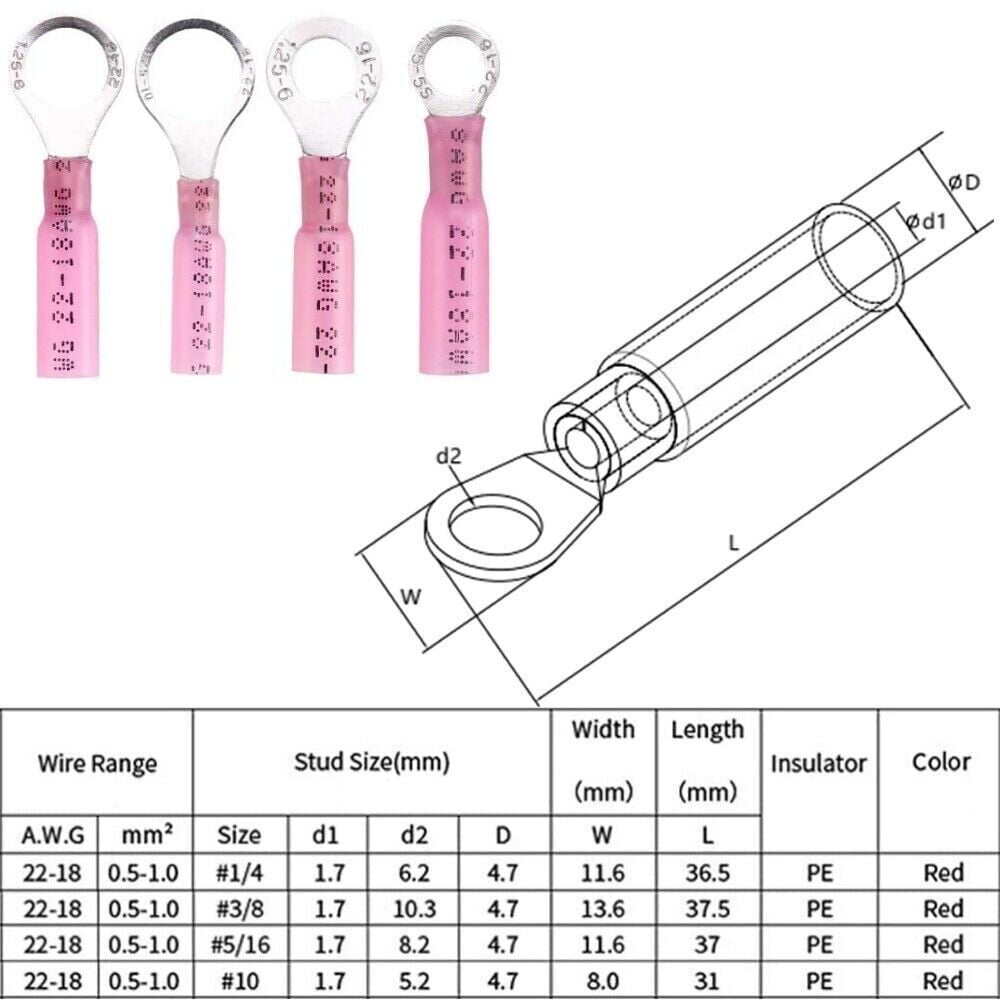

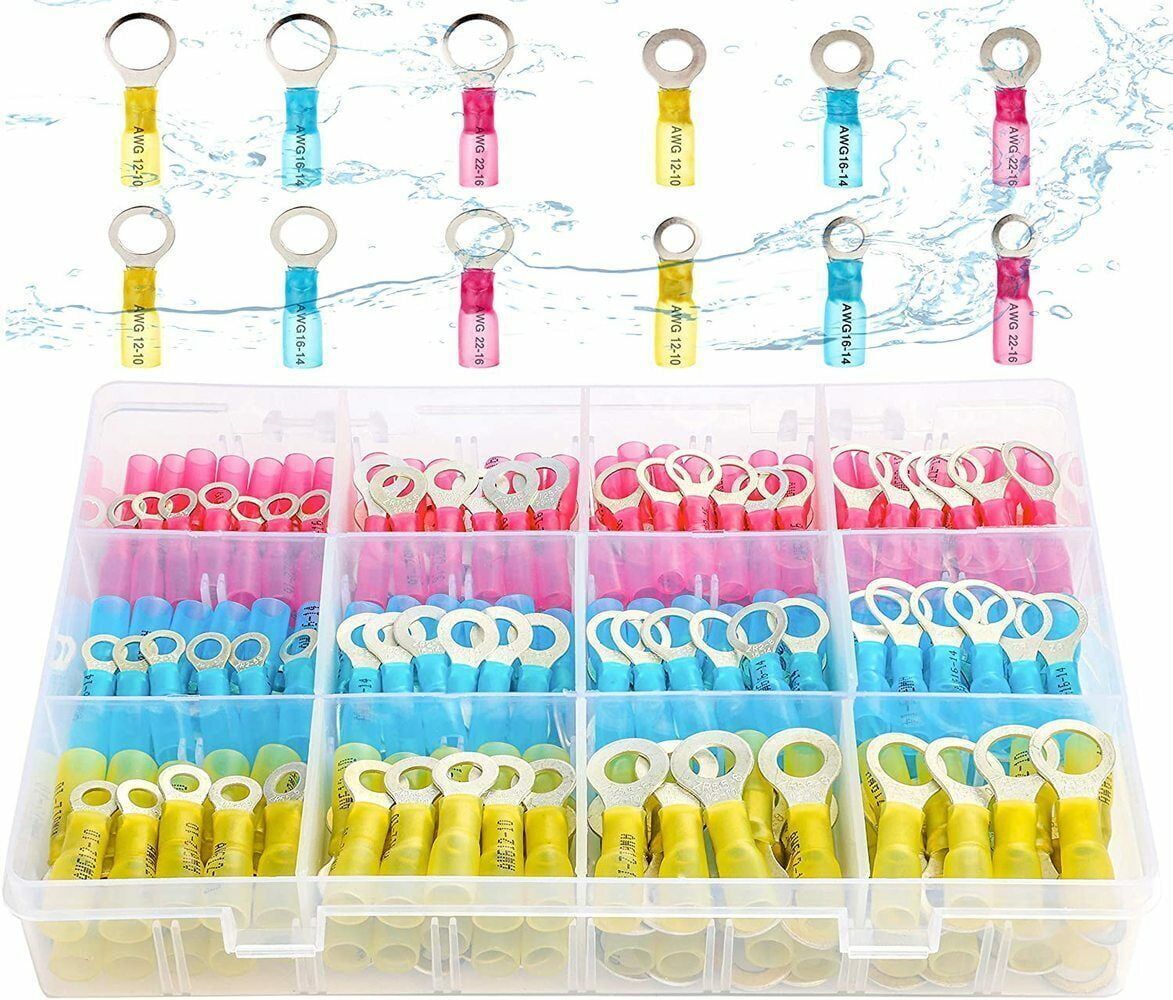

Product Description<br><br><br><br>Specifications:<br><br>260Pcs Heat Shrink Ring Connectors<br><br>Max current=19 A<br><br>Operating temperature: -55 ℃ -125 ℃<br><br>Max Electrical Rating: 600 V<br><br>Start shrink temperature: 80 ℃<br><br>Fully shrink temperature: 130 ℃<br><br>Shrinking ratio: 3:1 <br><br>RED<br><br>Wire: A.W.G. 22-16/0.5-1.5mm2<br><br>Rated Current: 10A<br><br>Max Current: 19A<br><br>BLUE<br><br>Wire: A.W.G. 16-14/1.5-2.5mm2<br><br>Rated Current: 15A<br><br>Max Current: 27A<br><br>YELLOW<br><br>Wire: A.W.G. 12-10/4-6mm2<br><br>Rated Current: 24A<br><br>Max Current: 45A<br><br><br><br>Material : Copper + PE<br><br>Color: Red,Blue,Yellow<br><br><br><br>Package quantity:<br><br><br><br>Red:<br><br>30PCS*1/4"<br><br>30PCS*3/8"<br><br>30PCS*5/16"<br><br>30PCS*#10<br><br><br><br>Blue:<br><br>20PCS*1/4"<br><br>20PCS*3/8"<br><br>20PCS*5/16"<br><br>20PCS*#10<br><br><br><br>Yellow:<br><br>15PCS*1/4"<br><br>15PCS*3/8"<br><br>15PCS*5/16"<br><br>15PCS*#10<br><br><br><br>Unlike their vinyl and nylon counterparts, these heat shrink electrical connectors seal the wire from harsh marine and automotive environments.<br><br> Heat activated adhesive provides additional protection against strain, abrasion and vibration.<br><br>Benefits:<br><br>Increased current flow<br><br>No voltage drop<br><br>Super strong wire grip<br><br>All connectors are easy to crimp and will not split<br><br>Protection against corrosion<br><br>Greater tensile strength<br><br>Resistant to abrasion, stretch and vibration<br><br>All materials used in our electrical connectors are heat resistant<br><br>Translucent tubing allows to inspect your connections<br><br>Color-coded with wire gauge imprint: easy to pick the right connector size<br><br>Convenient storage cases for quick access
