80KTYZ Permanent Magnet Synchronous Motors Controllable Positive Negative Inversion Metal Geared Reducer AC Electric Motor 220V(20rpm)

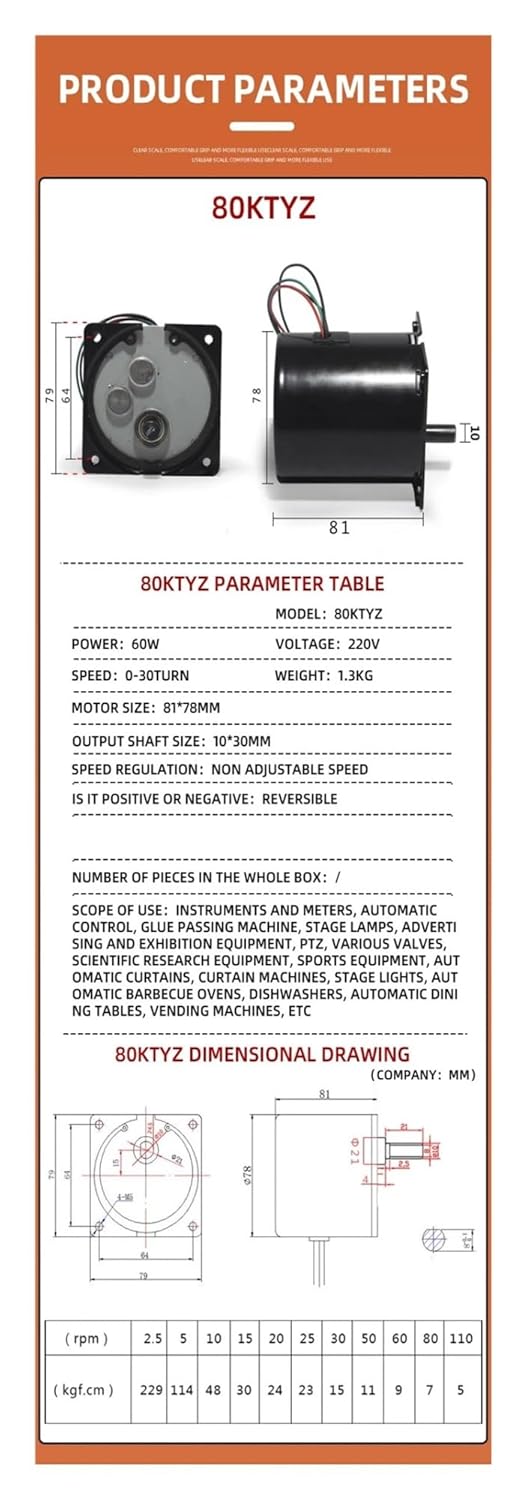

80KTYZ Permanent Magnet Synchronous Motors Controllable Positive Negative Inversion Metal Geared Reducer AC Electric Motor 220V1. 80KTYZ Mini 220V AC Permanent Magnet Synchronous Motor2. The motor has the following voltage options: AC 220V3. AC 220V ; You can choose the no load speed have : 5rpm ; 10rpm ; 20rpm ; 30rpm ; 50rpm Rated torque between 3 To 100 KGF.CM; Select a no load speed in AC 220V, there will be corresponding rated torque,please refer to the parameter table below.4. The direction of rotation of the motor : CW and CCW; Support Reversed ; But the speed of this motor is fixed, the speed cannot be adjusted.5. Power : 60W 6. Outstanding features of the motor: The motor is a permanent magnet synchronous motor ; Internal is metal gears ;Low speed and low noise 30dB ; Support continuous operation for 24 hours ; Speed adjustment is not supported ;5,000 hours of life under normal use ; Use materials ; Small size ; High torque ; Low power consumption ; Light weight and easy to use7. Motor application range : Automatic barbecue shelf; Automatic dining table; Curtain machine; Dishwasher; Automation control, etc.8. For the torque, size, product picture or other informations of the motor, please see the following information.ThankModel Number : 80KTYZPhase : Single-phaseProtect Feature : Totally EnclosedType : Synchronous MotorEfficiency : IE 2AC Voltage : 208-230 / 240 VOutput Voltage : 60WSpeed : 5-50 rpm/minFeature 1 : High TorqueFeature 2 : Synchronous MotorFeature 3 : Speed Reducer MotorsFeature 4 : Metal GearedFeature 5 : Copper Coil
