Amana Tool - 45796 Carbide Tipped Finger Joint 1-3/8 Dia x 1-9/16 x 1/2" Shank

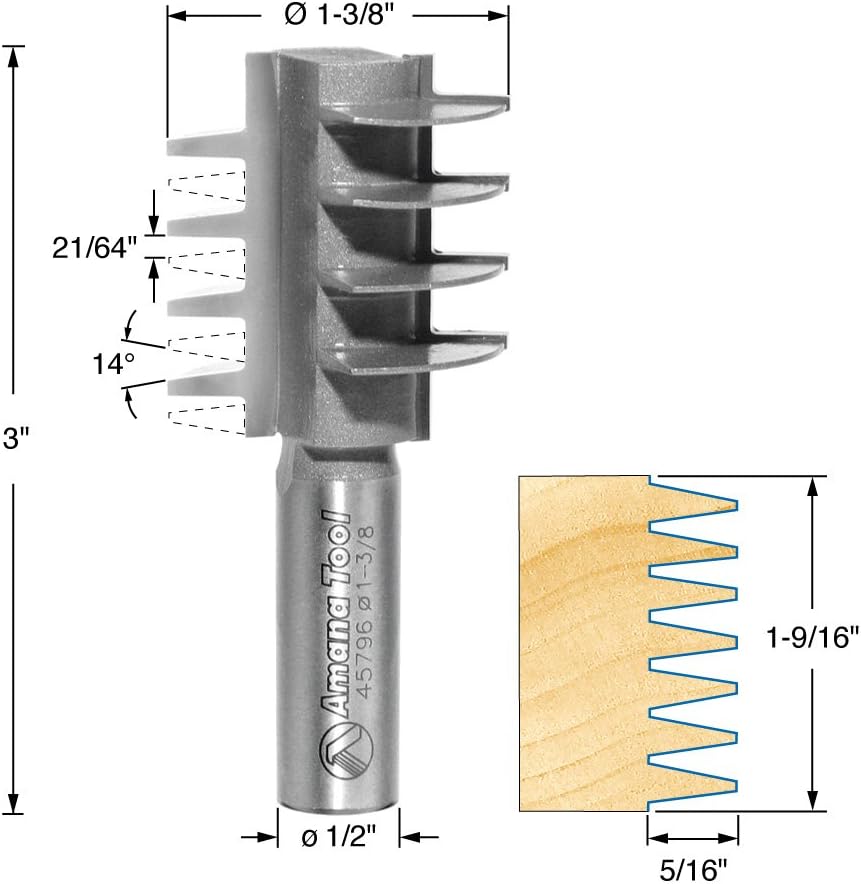

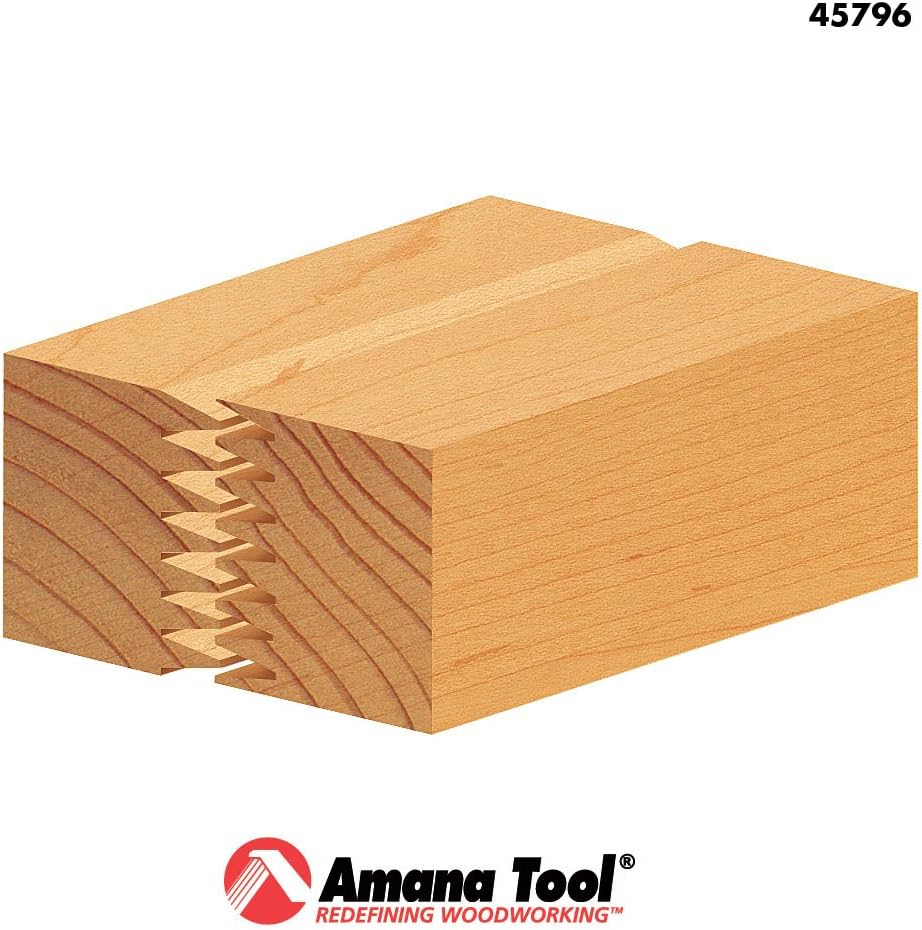

Product Description Cut interlocking fingers for strong end-to-end or edge-to-edge glue-ups with this simple bit. Setup is fast. Center the cut profile on the stock, then cut, alternating the orientation of the show face - up when cutting one workpiece, down when cutting Its mate. Use in all CNC and table-mounted routers. For best results use in a router table., #45796, diameter (D) 1-3/8, angle (a°) 14°, cutting Height (B) 1-9/16, shank (D) 1/2, overall length (L) 3, B1 21/64, flutes 2, C 5/16, carbide Tipped finger joint 1-3/8 dia x 1-9/16 x 1/2 inch Shank From the Manufacturer Since 1972, Amana Tool has been producing router bits and has become the global leader in its field. In fact, the company was the first manufacturer to produce router bits according to the Holz BG German standard for safety and quality. This standard contains rules that determine the structure and quality of the tool's material in order to create the safest environment for the user. From its beginning, Amana Tool has always used the highest quality materials and its tools are produced using unique technologies, a majority of which were developed and built by the company's engineers following decades of testing and experience. For example, Amana Tool uses carbon alloy steel for its router bits that contains vanadium particles. This improves the structural integrity of the steel and prevents corrosion and defects in the internal structure of the material that can lead to cracks and breaks. High-tech machinery processes the carbon alloy steel to manufacture the router bodies in a single clamping. This yields router bits with superior balance, centricity, precision and symmetry. Cut interlocking fingers for strong end-to-end or edge-to-edge glueups with this simple bit. Setup is fast. Center the cut profile on the stock, then cut, alternating the orientation of the show face — up when cutting one work piece, down when cutting its mate. Use in all CNC and table-mounted routers. For best results use in a router table.

• Diameter (D) 1-3/8
• Angle (a°) 14°
• Cutting height (B) 1-9/16
• Shank (D) 1/2
• Overall length (L) 3
