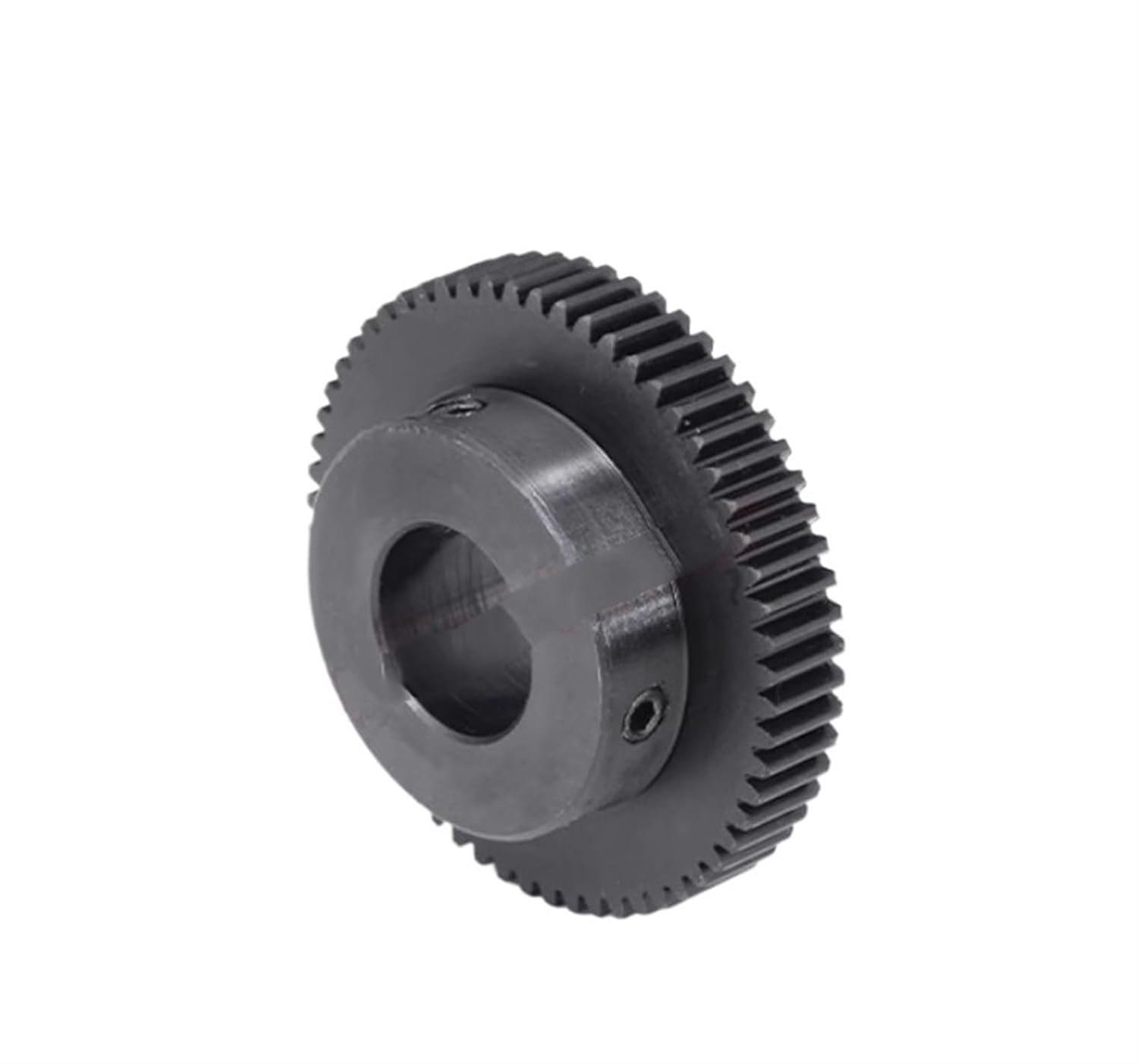

Bevel Gear Pinion Hardware Mechanical 1pcs 60 Teeth 1M Spur Gear 1 Module 60T Steel Motor Gear with Step Round Bore 6/8/10/12/14/15/16/17/18/19/20/22/24/25/30mm(17mm)

1. High strength, high torque, good comprehensive mechanical properties2. Low vibration, low noise, easy to clean and maintain, easy to operate3. Smooth surface can withstand slight wear and tear, hardened to improve work efficiency.Specification:Name: Spur Gear with StepModel: 1M (1 Module)Material: 45# SteelSurface Treatment: Teeth Hardening + Surface BlackeningNumber of Teeth: 60 TeethTooth Pitch: 3.14mmOuter Diameter: 62mmStep Diameter: Bore 6-20mm (Step Diameter 40mm); Bore 22-30mm (Step Diameter 50mm)Tooth Height: 10mmTotal Height: 20mmFixing screw: Feeding Machine Screw M6*2Bore: 6/8/10/12/14/15/16/17/18/19/20/22/24/25/30mmBore Tolerance: 0-0.04mmShaft Hole: Machining CompletedNote:1. The contour data described above (in addition to ensuring the accuracy of the inner hole) may vary slightly from batch to batch. No further notice, please refer to the actual subject!2. The gear material is 45# steel, and the inner holes are all positive tolerance 0-0.04mm. There may be a small number of burrs in stock, which is a normal phenomenon.

• 1. High strength, high torque, good comprehensive mechanical properties
• 2. Low vibration, low noise, easy to clean and maintain, easy to operate
• 3. Smooth surface can withstand slight wear and tear, hardened to improve work efficiency.
