RV Caravan Roof Vent, 500/700/800 x 500MM Cut Out RV Caravan LED Skylight, W/Sunshade, Anti-UV Roof Vent Hatch, for Caravan Trailer 800*500mm

This transparent skylight designed specifically for RVs will completely change your mobile life experience!500*500mm:Ordering Size (W x H): 500x500mm (19.7 x19.7 Inch)Cut Hole Size (W x H): 500x500mm (19.7 x19.7 Inch)Overall Size (W x H): 574x574mm (22.6 x22.6 Inch)700*500mm:Ordering Size (W x H): 700x500mm (27.6 x19.7 Inch)Cut Hole Size (W x H): 700x500mm (27.6 x19.7 Inch)Overall Size (W x H): 774x574mm (30.5 x22.6 Inch)800*500mm:Ordering Size (W x H): 800x500mm(31.5 x19.7 Inch)Cut Hole Size (W x H): 800x500mm (31.5 x19.7 Inch)Overall Size (W x H): 874x574mm (34.4 x22.6 Inch)FEATURES:● Quick and easy for installation● Easy Ope-ration with gas lift spring● Anti-UV double-layer hollow acrylic cover● With net and sunshadeSPECIFICATIONS:Type: Roof windowMaterial: Aluminum alloy upper frame + ABS inner frame with LED lighting + double-layer hollow acrylic coverOpening angle: 70 degreesMounting: Clamp-onGlass: transparent graySunshade: whiteStandard roof window adapts to wall thicknesses of 30–60 mmSunroof corners: Rounded (diameter: 70 mm)Shipping weight: 23 lbsPACKAGE INCLUDES:1 x RV Caravan Skylight Hatch with LED lightNOTES:1. Professional installation is highly recommended.2. Please note that the order size is the size of the cut-out hole, not the overall size.3. Please cut the window according to the actual size of the skylight. It must be curved, and a gap must be left when installed at a right angle.

• 【RV ROOF VENT TOP WINDOW】With 12V DC LED light band for lighting function, just connect to car power. Concealed gauze sunshade,easy to slide open. Sun protection, rain protection, breathability, and RV lighting decoration. Maximum open angle: 70°.

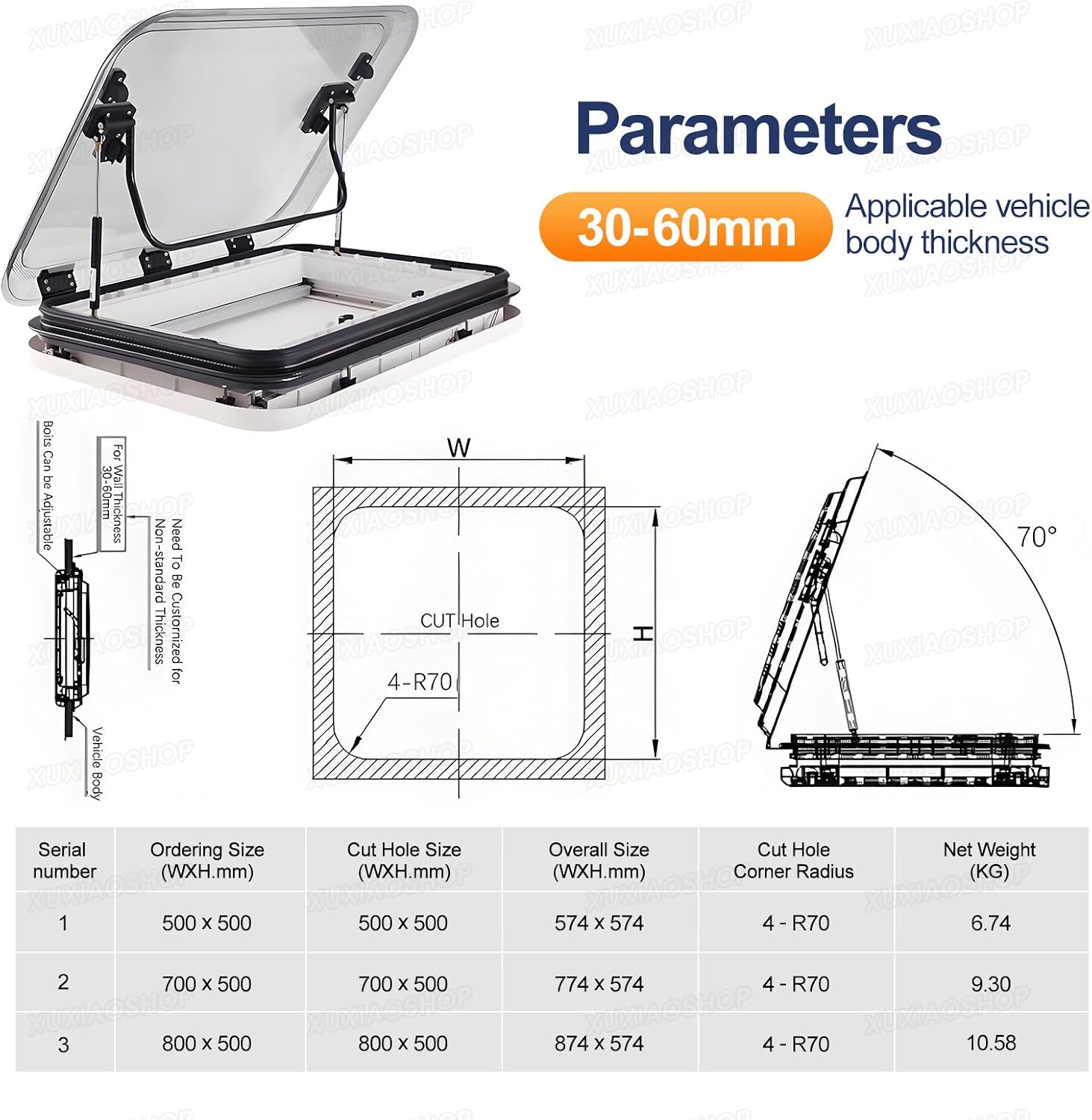

• 【3 SIZE SPECIFICATIONS】Size: Opening Angle: 70 degrees, Standard Skylight Fits Wall Thickness: 30-60mm, Hole Size (W x H): 500x500mm , Overall Dimensions: 574x574mm； Hole Size : 700x500mm, Overall Dimensions: 774x574mm ；Hole Size (W x H): 800x500mm , Overall Dimensions: 874x574mm
• 【FUNCTIONS】Pushed outwards rv skylight window, easy ope-ration with gas lift spring, with sunshade net & blinds , more ventilate breathable and prevent the entry of flying objects, protect privacy, allow sunlight in. Aluminum frame and double acrylic glass materia. Moisture resistant, insulate, best sound insulation and water seal effect, rv vent roof .
• 【APPLICATION】Mainly used for caravans, trailers, modified vehicles, special vehicles, etc. NOTE: Please note that ordering dimensions are cut-out dimensions, not overall dimensions.
• 【NOTE】When ordering windows, please select the appropriate fitting thickness for your order. Please cut the windows according to the actual size of the skylight. Must be arc-shaped with clearance at right angles. When opening the hole, please note that the four corners of the skylight are rounded, and the rounded corners of the skylight are 70mm in diameter.
